decorative wire mesh for metal curtain web-110140 manufacturer from China web wire mesh co.,ltd

Payment Terms:	T/T,L/C,WU,
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: web-110140

Production Capacity: 800000000sq.m per year

Application: Others

Material: Others

Means of Transport: Ocean,

Delivery Date: within 20 days after confi...

Type: Others

As its significant decorative effect, metal curtain applies to a wide range of areas, such as high standard hotels, exhibition halls etc.

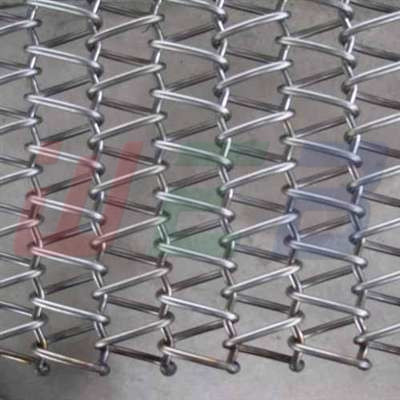

Decorative wire mesh

1.model:web-110140

2.Material:stainless steel, cooper, aluminum

3.Type:cable mesh

The types of WEB decorative wire mesh may be crimped decorative wire mesh, stranded decorative wire mesh, belt decorative wire mesh, flat wire decorative wire mesh, dutch decorative wire mesh, cellular decorative wire mesh, rope decorative wire mesh.

WEB decorative wire mesh specification

Crimped decorative wire mesh

Wire gauge:1.5~3.0mm

Hole:6*6mm, 10*10mm, 15*15mm, 20*3mm, 25*12mm

Stranded decorative wire mesh

Rope diameter:0.6mm*2, 2.75mm*2

0.45mm*3, 2mm*3, 3mm*3

0.75mm*4, 1mm*4, 2mm*4

Rope distance:3-80mm

Rod diameter:0.5-4.0mm

Rod distance:1.5-15.0mm

Belt decorative wire mesh

Screw diameter:2*4mm, 1.7*5.0mm

Strip spacing:10-40mm

String diameter:1.5-3.5mm

Pitch distance:10-60mm

Flat wire decorative wire mesh

Weft wire:3.4*1.1mm, 1.5*6.0mm, 2.0*1.0mm

Weft wire distance:3.0-12.0mm

Warp:1.5*2mm, 1.5*6mm, 1.8*0.8mm

Warp distance:2.5-12.0mm

Dutch decorative wire mesh

Warp wire:1.5mm*1, 1.6mm*1, 2mm*1

Warp wire distance:5-18mm

Weft wire:1.5mm

Rope mesh

Rope structure:7*7, 7*19

Hole:25*25mm, 38*38mm, 50*50mm, 75*75mm, 100*100mm

Application

As its significant decorative effect, metal curtain applies to a wide range of areas, such as high standard hotels, exhibition halls etc.And it also become the new darling of the art of architecture.

Characteristics

1.metal texture, flow lines

2.Elegant, magnificent, fashionable

3.Easy to maintain, easy to clean as its smooth appearance

When ordering, please specify

1.Material

2.Type

3.Wire diameter, hole size

4.Width and length

5.Surface finish

6.Order quantity
