decorative wire mesh for curtain wall

Payment Terms: T/T,L/C,WU,
Place of Origin: Hebei, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Means of Transport: Ocean,
Delivery Date: within 20 days after confi...
Production Capacity: 800000000sq.m per year

Decorative wire mesh is widely used in building facades and partitions, such as hotels, villas, museums, opera houses, concert halls, offices, exhibit

Decorative wire mesh for curtain wall
1.model:web-110140
2.Material:stainless steel, cooper, aluminum
3.Type:cable mesh


The types of WEB decorative wire mesh may be crimped decorative wire mesh, stranded decorative wire mesh, belt decorative wire mesh, flat wire decorative wire mesh, dutch decorative wire mesh, cellular decorative wire mesh, rope decorative wire mesh.


WEB decorative wire mesh specification

Crimped decorative wire mesh
Wire gauge:1.5~3.0mm
Hole:6*6mm, 10*10mm, 15*15mm, 20*3mm, 25*12mm

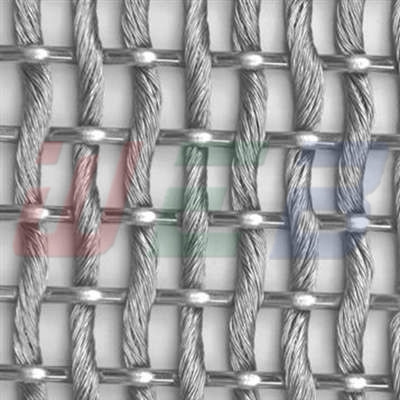

Stranded decorative wire mesh
Rope diameter:0.6mm*2, 2.75mm*2
               0.45mm*3, 2mm*3, 3mm*3
               0.75mm*4, 1mm*4, 2mm*4
Rope distance:3-80mm
Rod diameter:0.5-4.0mm
Rod distance:1.5-15.0mm
Belt decorative wire mesh
Screw diameter:2*4mm, 1.7*5.0mm
Strip spacing:10-40mm
String diameter:1.5-3.5mm
Pitch distance:10-60mm
Flat wire decorative wire mesh
Weft wire:3.4*1.1mm, 1.5*6.0mm, 2.0*1.0mm
Weft wire distance:3.0-12.0mm
Warp:1.5*2mm, 1.5*6mm, 1.8*0.8mm
Warp distance:2.5-12.0mm
Dutch decorative wire mesh
Warp wire:1.5mm*1, 1.6mm*1, 2mm*1
Warp wire distance:5-18mm
Weft wire:1.5mm
Rope mesh
Rope structure:7*7, 7*19
Hole:25*25mm, 38*38mm, 50*50mm, 75*75mm, 100*100mm


Application
Decorative wire mesh is widely used in building facades and partitions, such as hotels, villas, museums, opera houses, concert halls, offices, exhibition halls, shopping malls.


Characteristics
1.non-flammable, high strength, durable
2.Strong function and vivid decorative effect
3.Easy to install and maintain
4.Protective effect on buildings,chic and elegant appearance


When ordering, please specify
1.Material
2.Type
3.Wire diameter, hole size
4.Width and length
5.Surface finish
6.Order quantity
